Stamping

TDM, Troy Design and Manufacturing Product and Services Offerings are listed below.

  • -Die construction
  • -Die tryout
  • -Flexible forming solutions
  • -Variable binder tools
  • -FEA correlation studies
  • -Production process verification
  • -Special projects and R&D partnerships
  • -Specialists in Aluminum
  • -Rapid prototype solutions

TDM, Troy Design and Manufacturing Offers services via cutting edge technology and the listed below is a sneak peek.

Equipment that we use:

  • -Die Barbering
  • -Die Assembly
  • -Blank Development and Tryout
  • -Mechanical Press Stamping
  • -Hydraulic Press Stamping
  • -Production Tool Tryout
  • -Class 1 Surface Audit
  • -Circle Grid Analysis
  • -FLD and Stretch Analysis
  • -Table Top Cam Operations
  • -Variable Binder Tonnage Forming

The results of our latest technology is easy to understand. End results are easy to assess and the need for alternative designs very quickly.

Detailed analysis using computer models helps you understand whether or not to optimize the required part for low cost manufacture.

Using Circle Grid analysis and other processes that we have adapted, we measure the strain level and predict the problem before they become a problem.

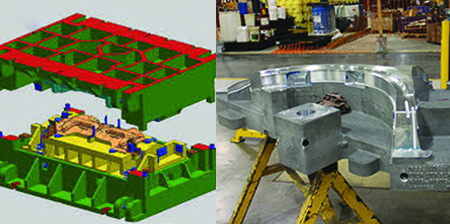

Die Construction

Prototype and production dies built to design and built to last according to every requirement.

TDM offers "prototyping" and the models will be tested to replicate and meet the required criteria. We follow the modern trend and eliminate the physical prototype and model all aspects of the final product as a 'Computer Model'. Please read more on our Services.

Die Tryout

Our tool and die makers are the best in the business with the experience to get the most out of every blank. We evaluate the performance of proposed design in the early phases with an ultimate goal of identifying and eliminating potential flaws.

Table Top Cam / Variable Binder

New developments in metal forming through innovation and industry partnerships.

FEA Correlation

A closed loop feedback process between manufacturing and engineering that yields significant cost savings in production.

If you are interested in learning more about us, please send us an email.
